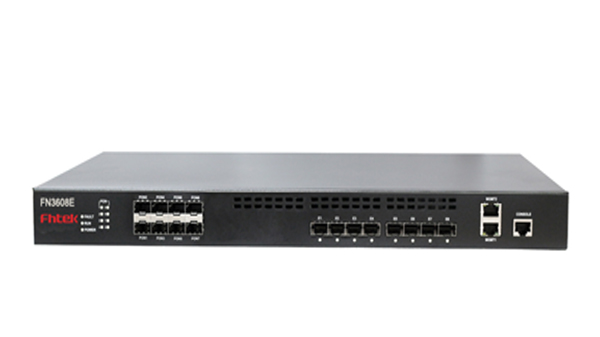

FN3608E

1U Box OLT-8 port

GPON OLT FN3608E is a high density 1U pizza box designed using advanced technology and ASIC chips. FN3608E is fully compliant with ITU-T G.984.x standards and can interwork with different types of ONU from different vendors. It is based on the mature and robust FOS software platform, which has high reliability and stability. FN3608E supports network management via CLI and SNMP with an easy to operate GUI.

1U pizza box OLT with the highest port density in the industry. Each unit supports up to 8 G/EPON ports, 2*10G uplink, high density and flexible deployment. It is suitable for various FTTH application scenarios of broadcast and television network.

KEY FEATRUES

  • Enhanced wide temperature standard design, which adapts to the installation of outdoor cabinet;

  • A single PON port supports a maximum splitting ratio of 1:128;

  • Support 8 PON ports, 2*10G uplink and 1+1 redundancy;

  • Broadcom chip-based high-performance solution.


SPECFICATIONS

Parameters

Description

Switching Capacity

40Gbps

PON Interface

8 ports GPON

Uplink Interface

2 ports 10GE(SFP+) or 8 ports   GE(SFP)

Power Supply

● AC：Input 100～240V，47～63Hz；

● DC：Input -38V～-72V；

Power consumption

● Typical: 42W;

● Maximum: 72W

Dimensions (mm) (W*D*H)

440mm*340mm*44mm

Environment

● Working temperature：-5°C～55°C

● Storage temperature：-40°C～70°C

● Relative humidity：10%～90%，no   condensing
