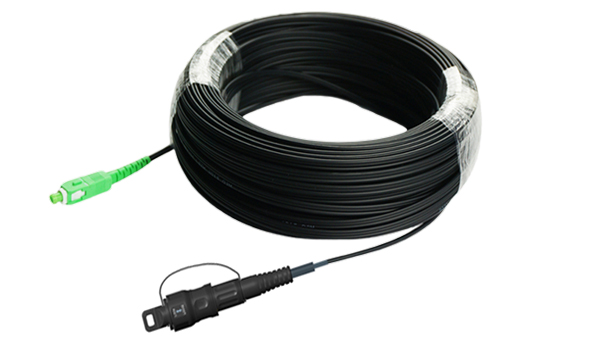

Built-in high precision ceramic ferrule. The connector has the visual positioning marking, auditory positioning feedback of the plug-play self-locking device, to achieve the ideal pairing installation scheme in the industrial field. It is made of special high-quality plastic shell, to meet the harsh environment of extremely strong high temperature and high humidity resistance, acid and alkali corrosion resistance, anti-UV etc.. its sealing water-proof performance up to IP68 level.
FEATURES
Figure-8 or round drop cable,G.657 fiber
Plug & play,easy to install
Connector is pre-connectorized in factory, save the field installation & disassembly time
Protection level: IP68
Long-term reliable connection
Guide mechanism,can be blinded with one hand,simple and quick,connect and install
Reduce fusing,connect directly to achieve interconnection
Visual positioning marking, auditory positioning feedback of the plug-play self-locking device
Item | Parameter | |
Fiber Mode | G657A | |
Repeatably | ≤0.3dB | |
Interchangeability | ≤0.3dB | |
Pulling force (connector) | ≥200N | |
Protection level | IP68 | |
Fiber Length | 30/50/100/150/200/250/300m or Customized | |
Operating Temperature | -20 ℃ ~ +70 ℃ | |
Storage Temperature | -40 ℃ ~ +70 ℃ | |
Installation Temperature | -40 ℃ ~ +70 ℃ | |
Assembly | ||
Insertion loss | L<100m, Max.0.3dB ,Typical.0.15dB | |
L＞100m ,Max.0.3dB+0.35dB/km*L @1310nm&1550nm | ||
Return loss | Min. 60 dB | |
