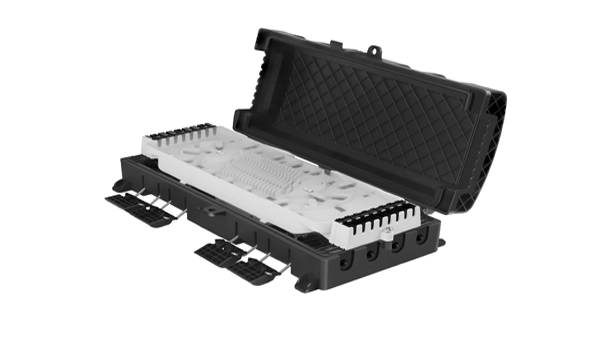

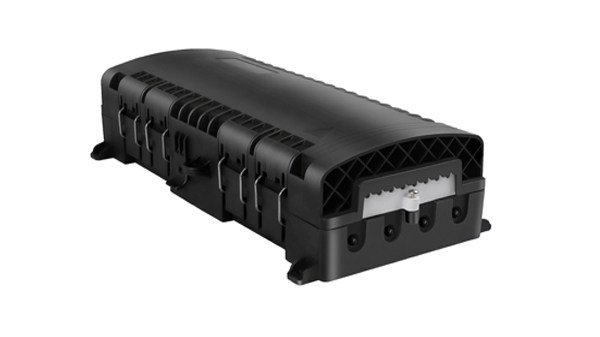

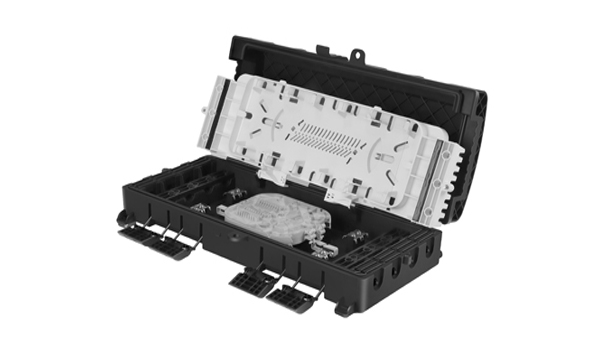

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
FEATURES
Advanced structure design, easy operation and reasonable routing.
Material: PP or PC+ABS.
Moisture proof, waterproof, dust-proof, anti-aging.
Protection level up to IP65.
8 cable entry.
Can install PLC splitter and subscriber access
Installation method: wall/pole/aerial-mounted
SPECIFICATION
Item | Specifications | Remark |
External dimension(mm) | 393*198*98 | |
Color | Black/Gray | Customizable |
Size and quantity of optical cable hole | 8 cable entry | |
Fusion capacity(Max) | 18(access) | |
Micro PLC Splitter | 2 x 1:8micro splitter | Splitter size：60x7x4mm. |
Into the largest cable diameter (mm) | ᴓ7~16 | |
Cable outlet size(mm) | 2*3~Ø5 | |
IP protection level | IP65 | |
Flammability | HB(Conventional) | Can be customized according to requirements |
Neutral salt spray test (NSS) | 48 h |
